Choosing a push-to-talk unit for a Motorola radio can be confusing because “Motorola compatible” does not describe one universal connector. Motorola has produced many families of handheld radios over the years, and different models use different accessory interfaces. Some use familiar two-pin connectors, some use single-pin connectors, and professional radio families may use proprietary multi-pin accessory ports.
There is also a second compatibility issue between the PTT and the headset itself. A complete communications setup has at least three pieces that must work together: the radio, the PTT, and the headset. The connector on only one end is not enough to determine whether the complete setup is compatible.
What Does a PTT Actually Do?
PTT stands for push-to-talk. In a typical tactical communications setup, the PTT sits between the radio and headset. Pressing the activation button keys the radio so your voice can be transmitted through the headset microphone. When the button is released, the radio returns to receive mode.
The PTT also provides the physical and electrical interface between the headset and radio. That is why compatibility matters. A connector can physically plug into a device without necessarily having the correct wiring, pin arrangement, microphone requirements, or electrical behavior.
Start With the Exact Motorola Radio Model
Before looking at PTT units, find the exact model number printed on your radio. Do not rely on descriptions such as Motorola handheld, Motorola walkie-talkie, Motorola business radio, Motorola Talkabout, or Motorola two-pin radio. Those categories are too broad.
Two radios made by the same manufacturer can use completely different accessory connectors. Write down the full model name or number, such as CP200, CP200D, PR400, HT750, HT1250, GP340, Talkabout T82, or another exact model. Then compare that exact model against the PTT manufacturer’s compatibility information.
Motorola M1 Two-Pin Connectors

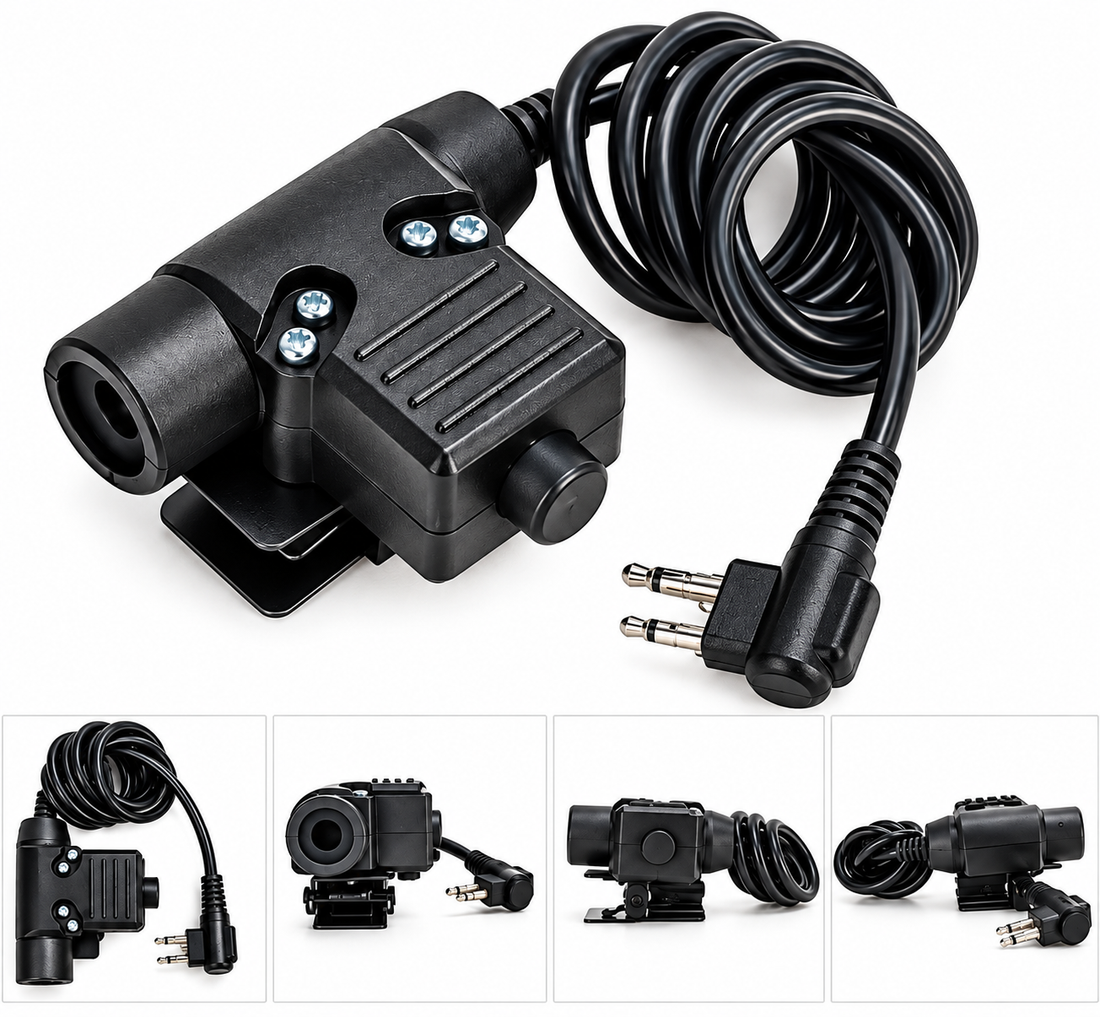

One of the most common accessory interfaces found on certain Motorola commercial radios is the M1-style two-pin connector. Bifrost Gear’s U94 PTT for Motorola 2-Pin uses an M1 two-pin radio connector and is listed for numerous Motorola models, including several CP, PR, RDU, and RDV series radios.
This is a good example of why compatibility lists are useful. Instead of assuming that every two-pin Motorola radio uses the same interface, verify the specific model. The presence of two visible pins does not guarantee compatibility.
What Does a Motorola Two-Pin Connector Look Like?
A typical Motorola two-pin accessory connector has two adjacent plugs designed to enter the radio’s microphone and speaker accessory ports simultaneously. Appearance alone should not be your compatibility test. Other radio manufacturers also use two-pin connectors, and some of them look similar from a distance.
Kenwood, Icom, Midland, Motorola, and other radio families may all have accessories that visually resemble one another while using different pin spacing, dimensions, electrical arrangements, or wiring. That is why manufacturers sell separate versions even when the plugs appear broadly similar.
Motorola Talkabout Radios May Use a Different Connector
Consumer-oriented Motorola Talkabout radios can require a different accessory connection. Bifrost Gear’s U94 PTT for Motorola Talkabout uses what the company identifies as an M6 2.5 mm single-pin connector rather than the M1 two-pin connector. Its published compatibility list includes a range of T-series, SX-series, FV-series, TLKR, and related Talkabout models.
This illustrates an important rule: do not buy a PTT for a Motorola radio based only on the Motorola brand name. A Talkabout radio and a CP-series commercial radio may require entirely different connectors.
Motorola M2 Multi-Pin Connectors
Many professional Motorola radios use multi-pin accessory interfaces. Bifrost Gear’s Valhalla PTT for Motorola M2, for example, uses an M2 multi-pin plug and is listed for radios including the GP320, GP328, GP338, GP340, GP360, GP380, HT750, HT1250, HT1550, PR860, and several PRO and MTX models.
A multi-pin connector is obviously different from a simple two-pin plug, but compatibility still should not be assumed based entirely on appearance. Check the exact radio model and the accessory-port standard.
Why Connector Shape Is Only the First Compatibility Check
People often stop once they find a PTT that physically fits the radio. That is only the first step. You should verify the radio connector type, PTT wiring standard, headset connector type, headset wiring standard, and microphone compatibility where relevant.
A mismatch anywhere in that chain can result in partial or complete failure. You might receive audio but be unable to transmit, key the radio without sending microphone audio, lose speaker audio, experience intermittent operation, or have a connector that fits physically but does not work electrically.
What Is a U94 PTT?
U94 refers to a widely used style of push-to-talk control associated with tactical communications systems. The housing usually includes a large activation button and a clip for attaching the PTT to clothing, body armor, chest rigs, or similar equipment.
However, U94 does not automatically tell you which radio it connects to. Different U94-style PTTs can terminate in entirely different radio connectors. The housing style is not the compatibility standard. The connectors, wiring, and electrical requirements are what matter.
What Is a Nexus TP-120 Connector?
Many tactical headsets use a downlead terminated in a Nexus TP-120 style plug. A compatible PTT provides the mating input connection. This is the headset side of the compatibility equation. Even after you identify the correct radio connector, confirm that your headset downlead matches the PTT input and wiring standard.
Why NATO and Other Wiring Standards Matter
Two connectors can fit physically while their internal electrical contacts are arranged differently. This is particularly important with tactical headsets and PTT systems. Bifrost Gear identifies its U94 Motorola two-pin PTT as NATO-US wired.
If you are pairing a PTT with an existing headset, confirm the wiring standard rather than assuming every TP-120-style connection behaves identically. This becomes especially important when combining products from multiple manufacturers or mixing military, commercial, airsoft, and consumer communications equipment.
Does Every Peltor-Style Headset Work With Every U94?
No. Descriptions such as Peltor-style, U94-style, and similar labels often refer to broad physical formats rather than guaranteed electrical compatibility. You need to know the actual headset model and its wiring. A professional communications headset may also use a different microphone type or electrical specification than a consumer reproduction.
When possible, verify compatibility using exact model numbers on both sides of the PTT. If a seller lists only broad terms and no specific compatibility information, ask before buying.
How to Check Compatibility Before Buying
Step 1: Identify the radio
Find the full manufacturer and model number. For example, Motorola CP200D. This should be the exact model printed on the radio or shown in the official documentation.
Step 2: Identify the radio accessory connector
Check the radio manual, accessory documentation, or a compatibility list from the PTT manufacturer. Do not rely on a visual guess when model-specific information is available.
Step 3: Identify your headset
Find the exact headset manufacturer and model number. Do not identify it only by appearance because many tactical-style headsets share similar housings.
Step 4: Check the headset plug
Determine what connector terminates the headset downlead. If it is a TP-120-style connection, confirm that the PTT provides the correct mating input.
Step 5: Verify wiring
Determine whether the headset and PTT use compatible wiring standards. Physical fit is not enough.
Step 6: Check microphone requirements
If the headset or radio system requires specific amplification or microphone characteristics, verify those requirements with the equipment manufacturer. Some headsets use microphone elements that expect different electrical behavior from the PTT.
Step 7: Confirm the exact combination
Whenever possible, confirm all three products as one system: exact radio plus exact PTT plus exact headset. This is much more reliable than separately determining that each item looks compatible.
Motorola PTT Compatibility Examples
Motorola CP200 and CP200D
These models appear on Bifrost Gear’s compatibility list for the Motorola M1 two-pin U94 PTT.
Motorola PR400
The PR400 is also listed with the M1 two-pin configuration.
Motorola HT750 and HT1250
These models are listed for Bifrost Gear’s Motorola M2 multi-pin PTT rather than the M1 two-pin unit.
Motorola GP340
The GP340 also appears on the M2 multi-pin compatibility list.
Motorola Talkabout T82
The T82 appears on Bifrost Gear’s Talkabout PTT compatibility list, which uses a different single-pin connection. These examples show how quickly connector requirements can change between Motorola product families.
Common PTT Compatibility Mistakes
Buying based on the brand alone
“Motorola compatible” is not specific enough. Always check the radio model.
Assuming all two-pin connectors are the same
They are not. Connector spacing, dimensions, pin diameter, and electrical configuration can differ.
Checking only the radio end
Your headset also has to match the PTT. A correct radio plug does not guarantee that the headset side is compatible.
Ignoring wiring standards
Physical compatibility does not always mean electrical compatibility. Verify the wiring standard when mixing components.
Assuming U94 is a radio connector standard
U94 primarily describes a PTT style. The radio cable attached to that PTT may terminate in many different connectors.
Assuming a compatibility list applies to a similar model
Radio names can be confusingly similar. If your exact model is not listed, confirm compatibility rather than assuming a close model number uses the same interface.
What Information Should You Have Before Contacting Support?
- Radio manufacturer and exact model
- Headset manufacturer and exact model
- Photo or description of the headset plug if necessary
- Current PTT model, if replacing one
- Whether the existing system currently receives audio, transmits audio, or partially works
Providing this information makes it much easier for a support team to determine where the compatibility issue may be. It also reduces the chance of purchasing multiple adapters in an attempt to solve what is actually a wiring mismatch.
Final Compatibility Checklist
- Exact Motorola radio model confirmed
- Correct radio-side connector confirmed
- Correct PTT configuration confirmed
- Compatible headset input confirmed
- Compatible headset plug confirmed
- Compatible wiring standard confirmed
- Any required microphone or amplification characteristics confirmed
- Published compatibility checked with the equipment manufacturer or seller
Final Thoughts
Motorola PTT compatibility becomes much easier once you stop thinking of the PTT as a standalone accessory. It is the bridge between two separate devices. The radio side must match your Motorola radio, the headset side must match your headset, and the wiring between them must also be compatible.
For radios such as the CP200 and CP200D, that may mean an M1 two-pin PTT. For radios such as the HT750 or GP340, an M2 multi-pin interface may be appropriate. Talkabout radios may use another connector entirely. Start with the exact radio model, verify the connector family, then check the headset and wiring. That simple sequence prevents most PTT compatibility mistakes before they happen.
