Picatinny Rail Riser Guide: How to Choose the Right Height for Your Optic

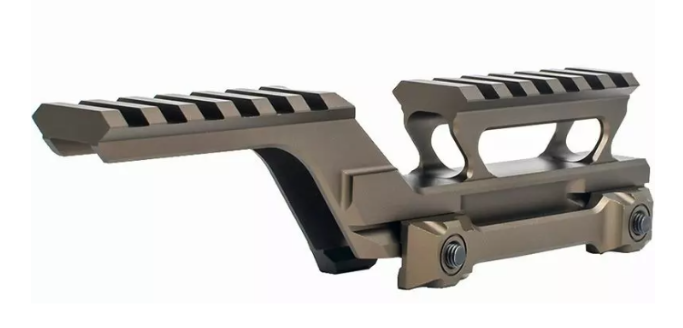

Visual guide: A Picatinny rail riser adds height between the firearm rail and optic mount.

Choosing the Right Picatinny Rail Riser

Choosing the right Picatinny rail riser can make a major difference in how your optic feels, how quickly you find your sight picture, and how comfortably you shoot.

A rail riser seems simple. It is a small mount that raises an optic higher above the firearm rail. But the height you choose affects eye alignment, cheek weld, co-witness, magnifier compatibility, night vision use, scope position, and whether your setup feels natural or awkward.

The goal is not to choose the tallest riser or the most tactical-looking mount. The goal is to place the optic at the correct height for your firearm, optic type, body position, and intended use.

Quick Answer: What Is a Picatinny Rail Riser?

A Picatinny rail riser is an accessory mount that attaches to a Picatinny rail and raises the mounting surface for an optic or accessory.

It is commonly used to raise red dot sights, scopes, magnifiers, night vision accessories, thermal devices, or other rail-mounted equipment so they align better with the shooter’s eye or other sighting systems.



What Does a Picatinny Rail Riser Do?

A rail riser changes the height of the optic above the firearm. That height affects where your eye naturally lands behind the optic, how much you need to lower your head, whether your iron sights co-witness with your red dot, and whether a magnifier lines up with your optic.

In simple terms, a riser helps place the optic where your eye already wants to be.

• Where your eye naturally lands behind the optic
• How much you need to lower your head
• Whether your iron sights co-witness with your red dot
• Whether a magnifier lines up with your optic
•  Whether a night vision or thermal device can be mounted in line
•  How comfortable the firearm feels from standing, prone, bench, or supported positions
• How stable your cheek weld feels
• How high your line of sight sits above the bore

Why Optic Height Matters

Optic height is not just a comfort issue. It changes how the firearm feels and how quickly you can use the sight.

If an optic sits too low, you may have to press your cheek down into the stock or tilt your head awkwardly. If it sits too high, you may lose cheek weld and feel like your head is floating above the firearm.

The right height lets you mount the firearm naturally and see through the optic without searching for the dot, reticle, or sight picture.



Picatinny Rail Basics

A Picatinny rail is a standardized accessory mounting rail commonly used on rifles, shotguns, carbines, and some handguns. It has evenly spaced slots that allow compatible mounts and accessories to lock into place.

A Picatinny rail riser attaches to this rail and creates a raised section of rail above it. The optic then mounts to the riser instead of directly to the firearm rail.

Picatinny Rail Riser vs. Optic Mount

A rail riser and an optic mount are related, but they are not always the same thing.



If your optic mount already gives you the correct height, you may not need a separate riser. If your optic sits too low, a Picatinny rail riser can solve the alignment problem.

Common Picatinny Rail Riser Heights

Rail risers come in several heights. The right height depends on what you are mounting and what you want the optic to line up with.



The listed riser height is only the added height. Your total optic height also includes the optic mount itself.



Understanding Total Optic Height

When choosing a Picatinny rail riser, do not look at the riser height alone. You need to consider total optic height.

Total optic height includes the firearm rail, the riser, the optic mount, and the optic centerline. For most shooters, the important measurement is the distance from the top of the rail to the centerline of the optic.

Example: If your red dot mount places the optic centerline at 1.0 inch above the rail and you add a 0.5 inch riser, your new optic centerline is approximately 1.5 inches above the rail.

How Rail Risers Affect Eye Alignment

Eye alignment is one of the main reasons shooters use risers. A properly chosen riser helps your eye line up with the optic when you shoulder the firearm naturally.

If your optic is too low, you may need to dip your head, strain your neck, force your cheek weld, and spend more time finding the dot or reticle.

If your optic is too high, your cheek weld may become weak, your head may float above the stock, and close-range mechanical offset becomes more noticeable.



Cheek Weld and Shooting Comfort

Cheek weld is the contact between your cheek and the stock. A consistent cheek weld helps you mount the firearm the same way each time, which improves comfort and repeatability.



A chin weld is when the shooter’s chin, rather than cheek, contacts the stock. Some shooters intentionally use higher optic mounts for heads-up shooting, but it is not ideal for every firearm or application.

Sight Picture and Speed

A good rail riser can make the optic easier to find quickly. This matters with red dot sights, holographic sights, magnifiers, low-power variable optics, thermal optics, and night vision compatible setups.

A higher optic can support a more upright head position, which may help with speed in close-range shooting, shooting with helmets, and shooting around barriers. However, higher is not always better. For precision work, prone shooting, or bench shooting, a lower and more stable cheek weld may be preferred.

Co-Witness: Absolute vs. Lower ⅓

Co-witness describes how your red dot aligns with backup iron sights. This is most common on AR-style rifles with red dots.

Absolute Co-Witness

With absolute co-witness, the red dot aligns directly with the iron sights when looking through the optic.



Lower 1/3 Co-Witness

With lower 1/3 co-witness, the iron sights appear in the lower portion of the optic window while the red dot sits slightly higher.





Choosing a Rail Riser for a Red Dot Sight

Red dots are one of the most common optics used with Picatinny rail risers. A riser may be needed if the red dot sits too low, if you want lower 1/3 co-witness, if you need alignment with a magnifier, or if you are using a helmet, mask, or night vision device.

The most important rule is simple: the red dot and your eye should meet naturally when the firearm is mounted.

Choosing a Rail Riser for a Scope

Scopes usually use rings or one-piece mounts rather than simple rail risers. However, a Picatinny rail riser may still be useful if the scope sits too low, the objective bell needs clearance, the scope needs to clear backup sights, or the stock has a high comb.

For scopes, choose the lowest height that provides proper eye alignment, objective clearance, and comfortable cheek weld. Avoid adding unnecessary height.

Choosing a Rail Riser for a Magnifier

Magnifiers must align with the red dot or holographic sight in front of them. If the magnifier is too low or too high, the view may be distorted, shadowed, or unusable.

A magnifier should sit at the same optical centerline height as the red dot or holographic sight it is paired with.

Choosing a Rail Riser for Backup Iron Sights

Backup iron sights are usually mounted directly to the firearm rail. A riser can interfere with them if not planned properly.

If you rely on backup irons, choose a riser height that supports your intended co-witness or choose a quick-detach setup that allows the optic to be removed quickly if needed.

Choosing a Rail Riser for Night Vision or Thermal Use

Night vision and thermal setups often require special attention to optic height. A taller optic height may help when shooting with night vision goggles, helmet-mounted devices, gas masks, large ear protection, thermal clip-ons, laser aiming devices, or protective eyewear.

Taller rail risers can help with night vision, masks, helmets, and heads-up shooting, but they also increase height over bore and can make close-range aiming offsets more significant.

Decision path: Start with your intended optic setup, then confirm comfort and zero after installation.

Red Dot Riser Height Guide



Choosing the Right Riser by Firearm Type

AR-Style Rifles

AR-style rifles commonly use risers because the stock is in line with the receiver. Common goals include absolute co-witness, lower 1/3 co-witness, magnifier alignment, heads-up shooting, and night vision compatibility.

Shotguns

Shotguns can be more sensitive to optic height because many stocks are designed for bead sights or low sighting systems. A riser that is too tall may make cheek weld difficult.

Rimfire Rifles

Rimfire rifles often have lower comb stocks and smaller receivers. A tall riser may feel awkward unless the stock has an adjustable cheek piece.

PCCs and Tactical Carbines

Pistol caliber carbines and tactical carbines often work well with red dots and moderate risers. Prioritize fast sight picture, comfortable upright position, and compatibility with irons or magnifier.

Bolt-Action Rifles

Bolt-action rifles usually use scope rings rather than rail risers. A riser may be useful if the stock comb is high or the scope needs more clearance, but excessive height can hurt precision and cheek weld.

Material and Durability

A rail riser must hold the optic securely under recoil, movement, and impact.





Mounting System: Fixed vs. Quick-Detach

Picatinny rail risers usually use either fixed screws or quick-detach levers.



Return-to-Zero Performance

Return-to-zero means the optic maintains or returns to the same point of impact after being removed and reinstalled. A riser can affect return-to-zero because it sits between the firearm and the optic.

•  Precise machining
• Strong recoil lug engagement
• Consistent rail slot placement
• Proper torque
• Quality fasteners
•  Stable clamping surface
• Repeatable installation technique



Installation Tips for Picatinny Rail Risers

Installing a rail riser is simple, but small mistakes can cause accuracy and reliability problems.

1.  Make sure the firearm is unloaded and safe.
2. Clean the rail surface.
3. Place the riser in the desired rail position.
4. Push the riser forward into the rail slot before tightening.
5. Tighten screws or levers evenly.
6. Follow the manufacturer’s torque recommendations.
7. Install the optic on the riser.
8. Confirm eye alignment and sight picture.
9. Check for interference with backup sights, magnifiers, charging handles, or accessories.
10. Zero the optic after installation.

Why Push the Riser Forward?

Under recoil, mounts tend to move forward against the rail slot. Pushing the riser forward before tightening helps seat it consistently and reduces movement.

Should You Use Threadlocker?

Use threadlocker only if the manufacturer recommends it. If used, choose the correct type and avoid overapplying it. Too much threadlocker can make removal difficult and can damage small screws.

Common Mistakes When Choosing a Picatinny Rail Riser

Choosing Height Based on Looks

A tall optic setup may look modern, but it may not fit your firearm, stock, shooting style, or intended use. Choose height based on eye alignment, not appearance.

Forgetting Total Optic Height

A 0.5 inch riser does not mean your optic height is 0.5 inch. It means you are adding 0.5 inch to the existing mount height.

Ignoring Cheek Weld

If the riser makes your head float above the stock, the setup may feel unstable and inconsistent.

Mismatching Red Dot and Magnifier Height

A magnifier must align with the red dot. If their centerlines do not match, image quality and usability suffer.

Blocking Backup Iron Sights

Some risers prevent iron sights from being used through the optic. If backup irons matter to you, plan co-witness before buying.

Using a Cheap Riser for a Serious Setup

A low-quality riser can loosen, shift, damage the rail, or fail to maintain zero. This is especially important on firearms with heavier recoil or duty use.

Mounting Too Many Risers Together

Stacking risers can create instability. It is usually better to use one correct-height riser or a dedicated optic mount.

Not Re-Zeroing After Installation

Any time you change optic height, mount, or riser position, you should confirm zero.

Practical Height Selection Guide



How to Test If Your Riser Height Is Correct

Shoulder the Firearm Naturally

Close your eyes, shoulder the firearm, settle into your normal position, then open your eyes. If your eye is centered behind the optic, the height is probably close. If you are looking below the optic, the setup may be too high. If you are looking above the optic or forcing your head down, the setup may be too low.

Test Multiple Positions

Check the optic from standing, kneeling, prone, bench, barricade or supported positions, while wearing hearing protection, and with a helmet or night vision if applicable.

Final Recommendation

The best Picatinny rail riser is the one that places your optic at the right height for your firearm, your eye, and your intended use.

For red dots, choose a riser that gives you the co-witness or heads-up position you want. For magnifiers, match the magnifier height to the optic. For scopes, avoid unnecessary height and prioritize cheek weld, eye relief, and stability.

Do not choose a riser by height alone. Consider total optic height, cheek weld, sight picture, material, mounting system, rail space, accessory compatibility, and return-to-zero performance.

A rail riser should make the optic easier to use, not just higher. If the firearm mounts naturally and your eye lands behind the optic without effort, you are on the right track.

FAQ: Picatinny Rail Risers

What is a Picatinny rail riser?

A Picatinny rail riser is a mount that attaches to a Picatinny rail and raises the mounting surface for an optic or accessory.

What is a Picatinny rail riser used for?

It is used to raise an optic or accessory to a more comfortable and usable height. It can improve eye alignment, sight picture, co-witness, magnifier alignment, night vision compatibility, and shooting comfort.

Do I need a rail riser for a red dot?

You may need a rail riser if your red dot sits too low, does not co-witness correctly with iron sights, does not align with your magnifier, or forces an uncomfortable head position.

What height rail riser do I need?

The correct height depends on your firearm, optic mount, desired sight height, and shooting position. Add the riser height to your current optic mount height to estimate total optic height.

What is total optic height?

Total optic height is the distance from the firearm rail to the centerline of the optic. It includes the optic mount height and any added riser height.

What is absolute co-witness?

Absolute co-witness means the red dot aligns directly with the iron sights when looking through the optic.

What is lower 1/3 co-witness?

Lower 1/3 co-witness means the iron sights appear in the lower third of the optic window while the red dot sits slightly higher.

Is lower 1/3 co-witness better than absolute co-witness?

Neither is always better. Absolute co-witness is simple and familiar. Lower 1/3 co-witness gives a cleaner optic window and a slightly more upright head position.

Can I use a rail riser with a scope?

Yes, but it is often better to choose the correct scope rings or one-piece mount first. A riser can help with eye alignment or clearance, but too much height can hurt cheek weld and consistency.

Can I use a rail riser with a magnifier?

Yes. A riser can help align a magnifier with a red dot or holographic sight. The magnifier and primary optic should have matching centerline heights.

Will a rail riser affect accuracy?

A rail riser can affect accuracy if it is loose, poorly made, incorrectly installed, or does not hold zero. A quality riser installed correctly should provide a stable mounting surface.

Do I need to re-zero after installing a rail riser?

Yes. You should confirm zero after installing, removing, or changing a rail riser because optic height and mount position can affect point of impact.

Does a taller riser change height over bore?

Yes. A taller riser increases height over bore, which is the distance between the optic line of sight and the barrel.

Are tall rail risers good for night vision?

Tall risers can help with night vision because they allow a more upright head position and can make it easier to see through the optic while wearing head-mounted equipment.

Can I use backup iron sights with a rail riser?

Yes, but the riser height must be chosen carefully. Some risers allow co-witness, while others place the optic too high or block the sight line.

What material is best for a Picatinny rail riser?

Quality aluminum is the best all-around material for most users because it is strong, lightweight, and durable.

Is a quick-detach riser worth it?

A quick-detach riser is worth it if you need to remove the optic quickly, switch setups, or access backup sights.

Can I stack two rail risers?

It is usually not recommended. Stacking risers can reduce stability and increase the chance of shifting.

Will a Picatinny riser fit a Weaver rail?

Some Picatinny accessories may fit some Weaver rails, but compatibility is not guaranteed because slot dimensions can differ.

How tight should a rail riser be?

Follow the manufacturer torque recommendations. Overtightening can damage screws or rails, while undertightening can allow the riser to shift under recoil.

Should I use threadlocker on rail riser screws?

Use threadlocker only if the manufacturer recommends it. If used, apply the correct type sparingly.

How do I know if my riser is too high?

Your riser may be too high if your cheek no longer contacts the stock, your head feels unsupported, your sight picture feels unstable, or close-range offset becomes difficult to manage.

How do I know if my riser is too low?

Your riser may be too low if you have to force your head down, strain your neck, crowd the stock, or search for the dot or reticle when shouldering the firearm.

What is the best Picatinny rail riser height for an AR rifle?

The best height depends on your optic and preference. Many AR users choose heights that provide absolute co-witness, lower 1/3 co-witness, or a taller heads-up position.

What is the best rail riser for a shotgun?

For shotguns, a low or moderate riser is usually best because cheek weld and recoil control are important.

What is the best rail riser for a rimfire rifle?

For rimfire rifles, a low or modest riser is usually best unless the stock has an adjustable cheek piece.

What is the most important factor when choosing a rail riser?

The most important factor is eye alignment. The riser should place the optic where your eye naturally lands when you mount the firearm.
